CQL2 series Leakage Protection Switch for Household Appliances
Main parameters and technical performance
| Technical parameter project | Parameter Value |
| Rated operating voltage (Ue) | 230VAC |
| Operating voltage range | 195-253V AC |
| Rated insulation voltage (Ui) | 250V |
| Rated impulse withstand voltage (Uimp) | 4000V |
| Rated current (In) | 40A |
| Rated frequency(Hz) | 50Hz |
| Rated residual current (I△n) | 30mA |
| Rated making and breaking capacity (Im) | 500A |
| Rated residual making and breaking capacity (I△m) | 500A |
| Rated limiting short-circuit current (Inc) | 3000A |
| Rated limiting residual short-circuit current (I△c) | 3000A |
| Rated residual operating current I△n | 30mA |
| Rated residual non-operating current I△mn | 15mA |
| Number of poles | 2P+PE |
| Action time | <0.1S |
| Electrical life (load) | 20000 times |
| Mechanical life (no load) | 20000 times |
| Installation | Installed on the indoor wall buried junction box with screws |
| Implementation Standards | GB16916.1, GB16916.22 |
| Work Environment | -10°C~+50°C |
| Storage environment | -20°C~+60°C |
| Operating humidity range | 5%-90% |
| Storage humidity range | 5%-95% |
| Working conditions | Installation location: Indoors at an altitude not exceeding 2000 meters |

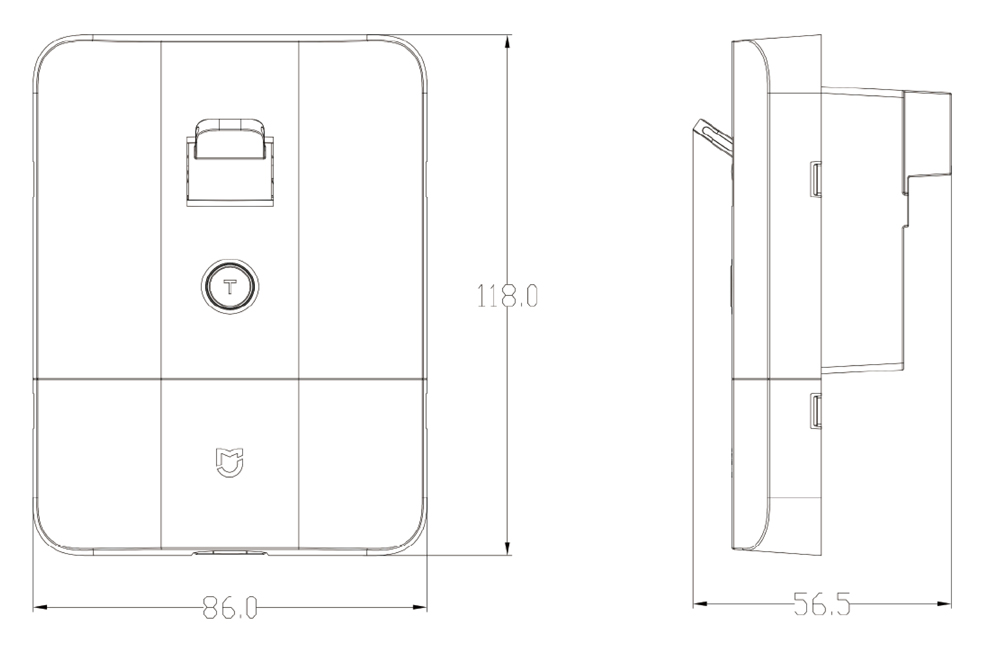

Dimensions(unit:mm)
Ordering Specifications
When ordering a leakage protection switch, the following points must be specified:
a) Product model, such as CQL2
b) Rated current, such as 32A, 40A;
c) Order quantity, e.g. 120 pieces.
Order:
CQL2 32A 120 pcs.
