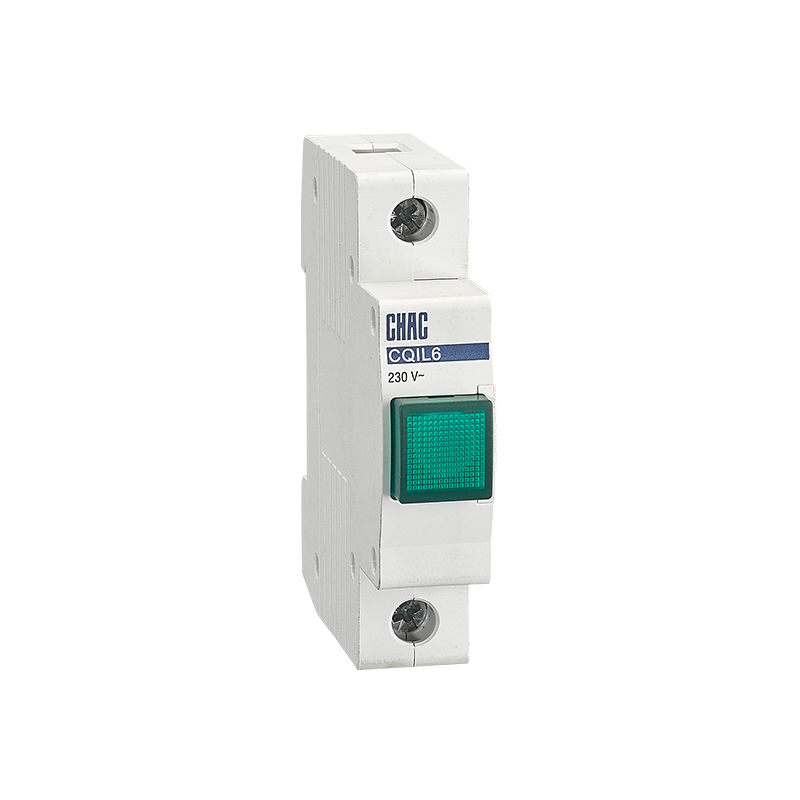

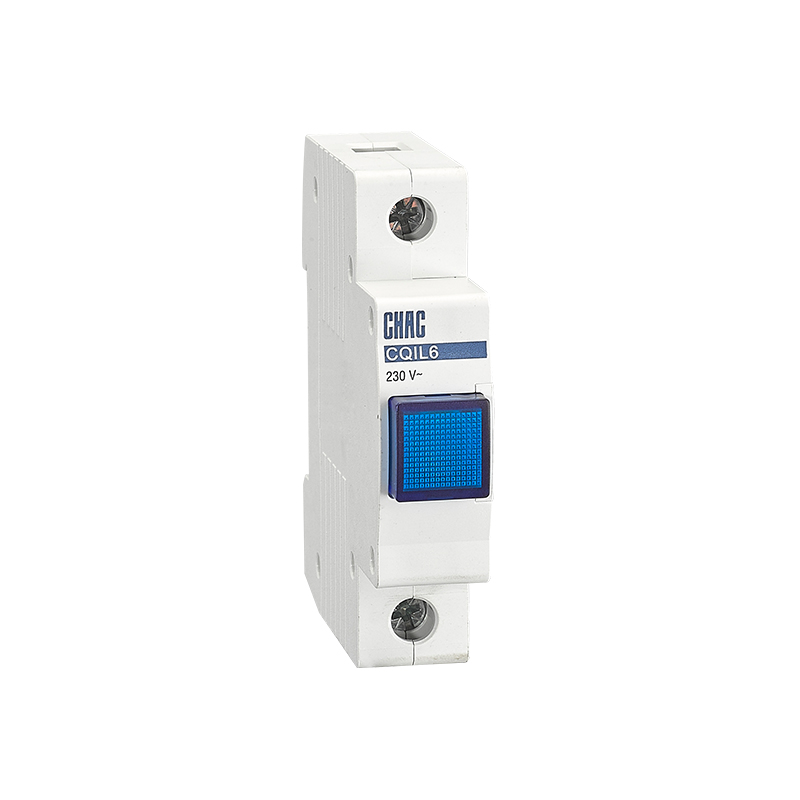

CQIL6(7) Compact Indicator Light for Panel Mounting

Overview and applications

CQIL6/CQlL7 indicator light can be used in50/60Hz 230V AC power circuit for alarm or indication with light signal. It can be used together with our other modular products or separately.

The CQIL6(7) indicator lights are designed for use on 50/60Hz 230V AC power circuits and are suitable for use on a variety of electrical systems. These indicators provide clear optical signals to indicate critical alarms or indications, ensuring operators can easily monitor the status of the electrical system. The CQIL6 model features a raised design, while the CQIL7 model features a flat profile, allowing users to select the style that best suits their specific installation needs.

The CQIL6(7) indicator lights feature a rugged construction, ensuring long-lasting durability even in harsh environments. The compact design of the indicator lights makes them easy to install in control panels and switchboards,  With a power loss of only 0.5W and a cross-sectional area of 16mm², the CQIL6(7) series is designed to operate efficiently without compromising performance.

Technical data

Conductor requirements and cross sections

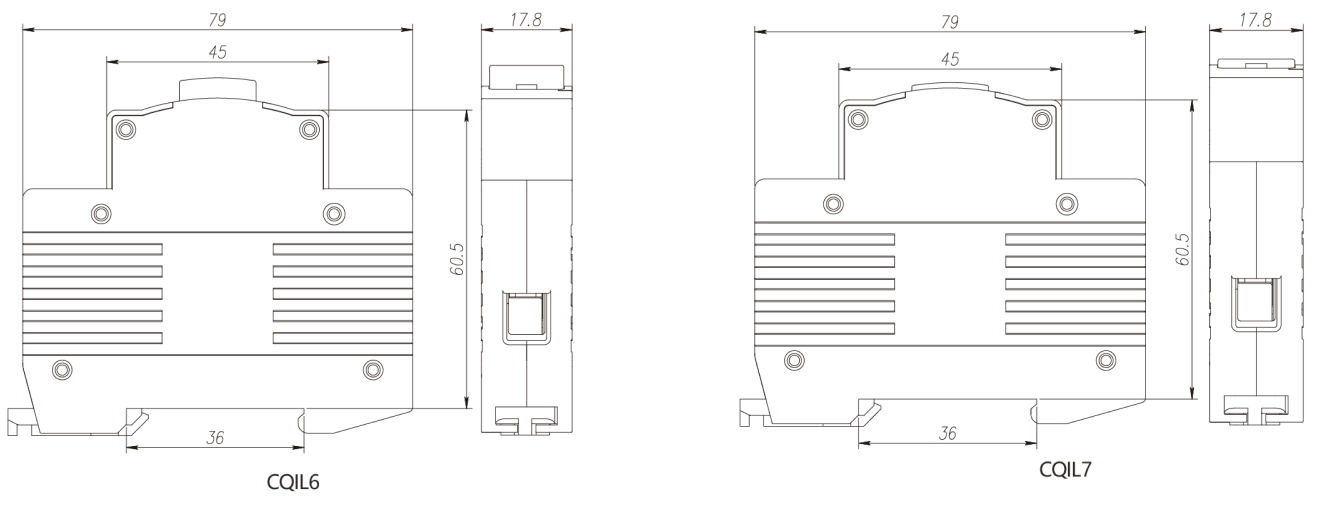

Dimensions (unit:mm)

Order Specifications

1.When ordering indicator lights, specify the following points:

A) product models, such as CQlL6;

B) order quantity, such as 100

2.Purchase order template

CQlL6 100pcs.
